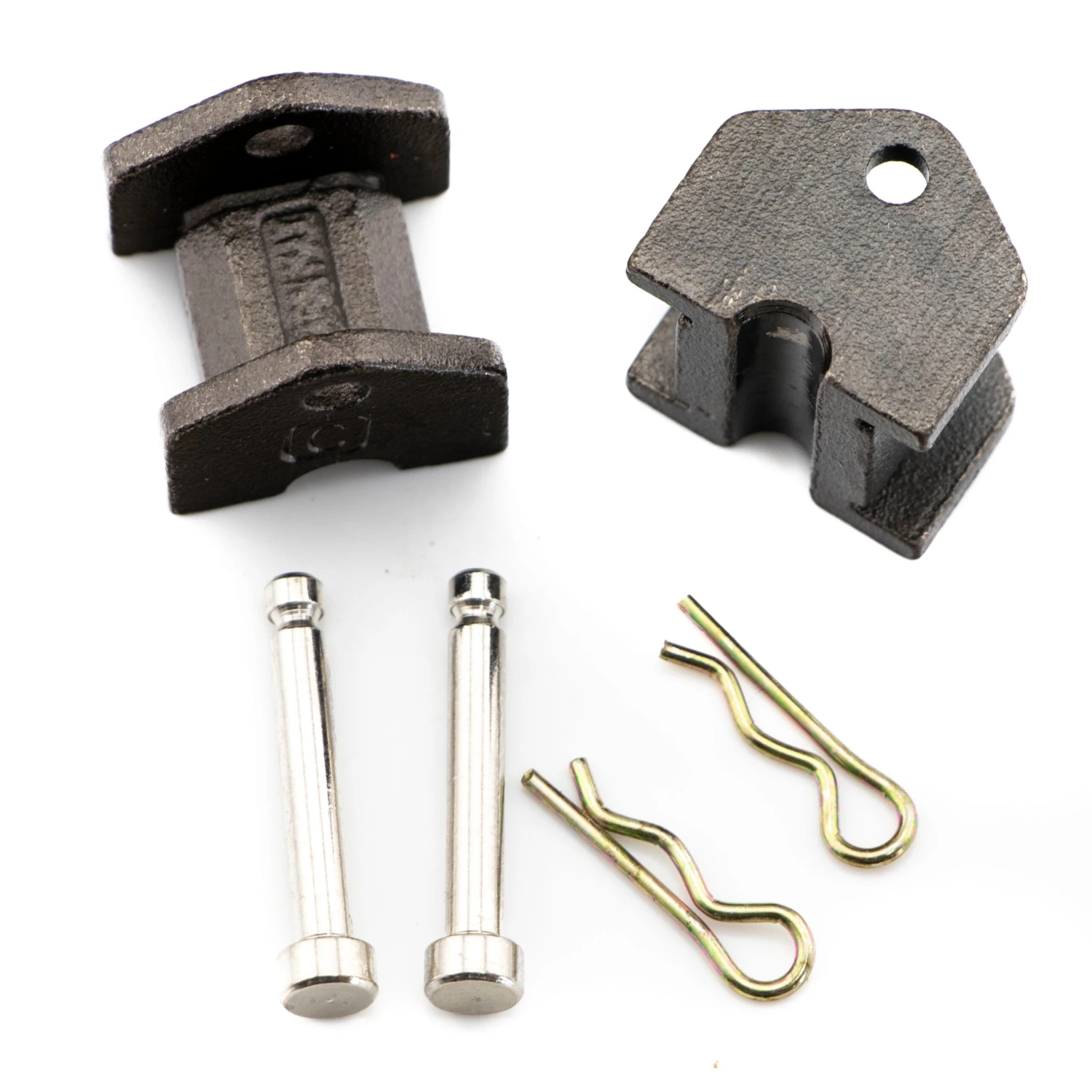

Interchangeable Die Sets For CT-1000 Heavy Duty Bench Crimper

Interchangeable die sets to fit your Momoi or Centro CT1000 style bench crimper. We also have exclusive custom drilled versions of these available which are meant to fit the Short “two press” sizes of crimps like SG and SF. The drilled W is meant to fit the H/LI crimp that works well with 130# & 150# leader applications.

Die Set	Hole Size	Sleeve Size	Mono Diameter	Momoi Pound Test
A	7.0m mm	4.2mm	3.20mm-3.50mm	700lb/800lb
B	5.7 mm	3.3 mm	3.0mm-3.2mm	600lb
C	4.6 mm	2.6 mm	2.3mm-2.5mm	500lb
D	4.3 mm	2.3 mm	2.2 mm	400lb
E	3.9 mm	2.0 mm	2.0 mm	300lb
F	3.6 mm	1.7 mm	1.8 mm	200lb/250lb
G	3.3 mm	1.5 mm	1.4 mm	100lb/150lb
